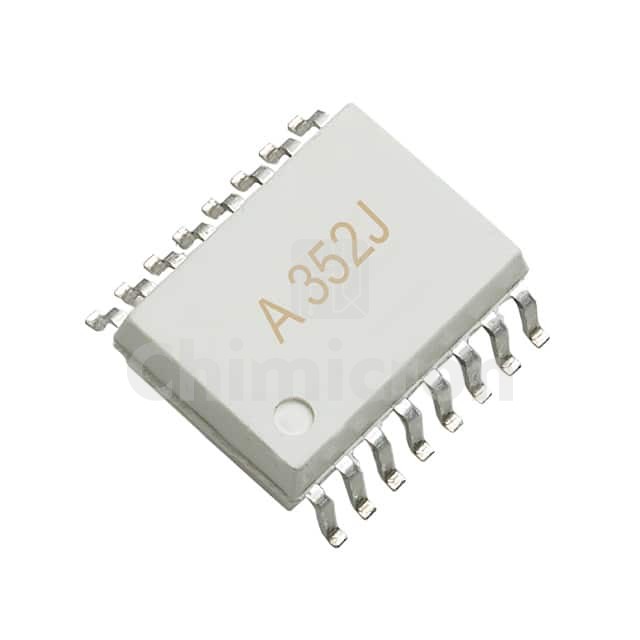

ACPL-352J-500E
Manufacturer: Broadcom
Description: OPTOISO 5KV 1CH GATE DRVR 16SOIC
Category : Isolators
Family: Isolators - Gate Drivers
Series: -
In Stock:2489
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACPL-352J-500E Broadcom at chimicron.com. We have 2489 pieces of ACPL-352J-500E in stock available now. Submit an inquiry for ACPL-352J-500E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)100kV/µs
Propagation Delay tpLH / tpHL (Max)150ns, 150ns
Pulse Width Distortion (Max)50ns
Rise / Fall Time (Typ)37ns, 30ns
Current - Output High, Low4.5A, 4.5A
Current - Peak Output5A
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
Approval AgencyCSA, IEC/EN/DIN, UR
