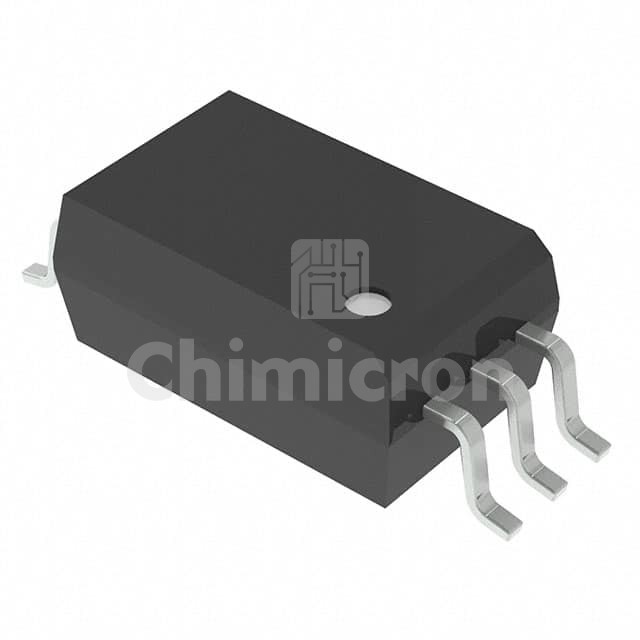

UCC23313DWYR
Manufacturer: Texas
Description: IC POWER MANAGEMENT
Category : Isolators
Family: Isolators - Gate Drivers
Series: -
In Stock:34000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC23313DWYR Texas at chimicron.com. We have 34000 pieces of UCC23313DWYR in stock available now. Submit an inquiry for UCC23313DWYR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)105ns, 105ns
Pulse Width Distortion (Max)35ns
Rise / Fall Time (Typ)28ns, 25ns (Max)
Current - Output High, Low4.5A, 5.3A
Current - Peak Output4.5A, 5.3A
Voltage - Forward (Vf) (Typ)2.1V
Current - DC Forward (If) (Max)16 mA
Voltage - Output Supply14V ~ 33V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width)
Supplier Device Package6-SOIC
Approval AgencyCQC, UL, VDE
