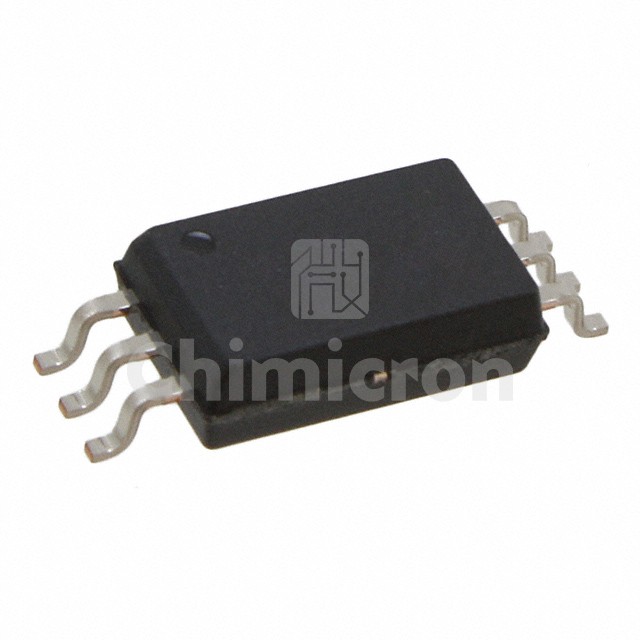

SI8261BCD-C-IS
Manufacturer: Silicon Labs
Description: DGTL ISO 5KV 1CH GATE DRVR 6SDIP
Category : Isolators
Family: Isolators - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:80000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SI8261BCD-C-IS Silicon Labs at chimicron.com. We have 80000 pieces of SI8261BCD-C-IS in stock available now. Submit an inquiry for SI8261BCD-C-IS or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTube
Part StatusActive
TechnologyCapacitive Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)60ns, 50ns
Pulse Width Distortion (Max)28ns
Rise / Fall Time (Typ)5.5ns, 8.5ns
Current - Output High, Low500mA, 1.2A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)2.8V (Max)
Current - DC Forward (If) (Max)30 mA
Voltage - Output Supply13.5V ~ 30V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width)
Supplier Device Package6-SDIP Gull Wing
Approval AgencyCQC, CSA, UR, VDE
