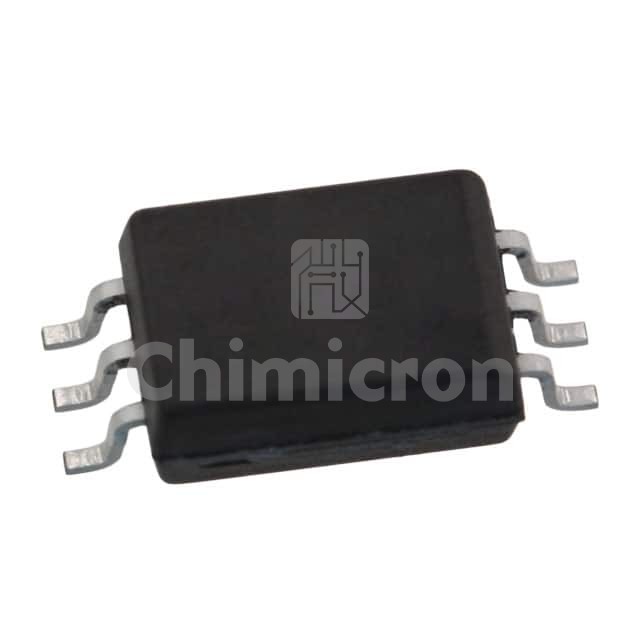

ACPL-P341-560E
Manufacturer: Broadcom
Description: OPTOISO 3.75KV 1CH GATE DRVR 6SO
Category : Isolators
Family: Isolators - Gate Drivers
Series: -
In Stock:7500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACPL-P341-560E Broadcom at chimicron.com. We have 7500 pieces of ACPL-P341-560E in stock available now. Submit an inquiry for ACPL-P341-560E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)200ns, 200ns
Pulse Width Distortion (Max)70ns
Rise / Fall Time (Typ)43ns, 40ns
Current - Output High, Low2.5A, 2.5A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SO Stretched
Approval AgencyCSA, IEC/EN/DIN, UR
