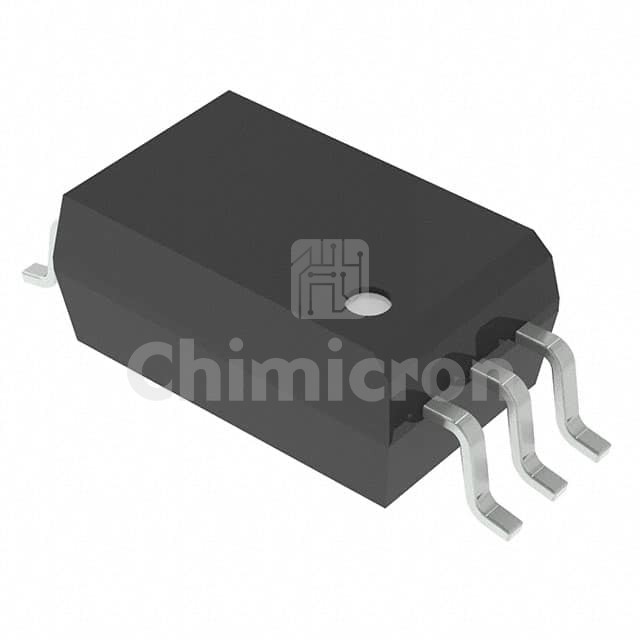

UCC23513BDWYR
Manufacturer: Texas
Description: 4-A/5-A, 5.7-KVRMS SINGLE-CHANNE
Category : Isolators
Family: Isolators - Gate Drivers
Series: -
In Stock:210000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC23513BDWYR Texas at chimicron.com. We have 210000 pieces of UCC23513BDWYR in stock available now. Submit an inquiry for UCC23513BDWYR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5700Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)105ns, 105ns
Pulse Width Distortion (Max)35ns
Rise / Fall Time (Typ)28ns, 25ns (Max)
Current - Output High, Low4.5A, 5.3A
Current - Peak Output4.5A, 5.3A
Voltage - Forward (Vf) (Typ)2.1V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply10V ~ 33V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width)
Supplier Device Package6-SOIC
Approval AgencyCQC, UL, VDE
