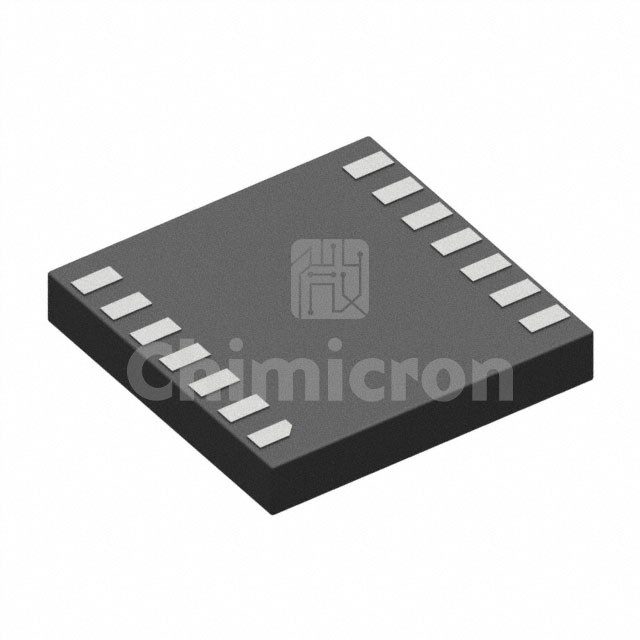

SI8274GB1-IM1
Manufacturer: Silicon Labs
Description: DGTL ISO 2.5KV GATE DRIVER 14LGA
Category : Isolators
Family: Isolators - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:2216
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SI8274GB1-IM1 Silicon Labs at chimicron.com. We have 2216 pieces of SI8274GB1-IM1 in stock available now. Submit an inquiry for SI8274GB1-IM1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTube
Part StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)200kV/µs
Propagation Delay tpLH / tpHL (Max)75ns, 75ns
Pulse Width Distortion (Max)19ns
Rise / Fall Time (Typ)10.5ns, 13.3ns
Current - Output High, Low1.8A, 4A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-VDFN
Supplier Device Package14-QFN (5x5)
Approval AgencyCQC, CSA, UR, VDE
