IRF7604TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 20V 3.6A MICRO8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF7604TRPBF IR (Infineon Technologies) at chimicron.com. We have 5000 pieces of IRF7604TRPBF in stock available now. Submit an inquiry for IRF7604TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.7V, 4.5V
Rds On (Max) @ Id, Vgs90mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds590 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.8W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount

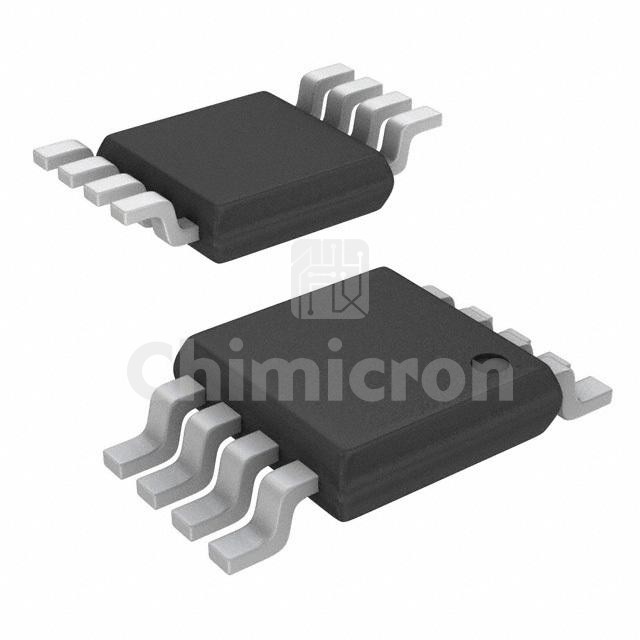

Supplier Device PackageMicro8™
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
