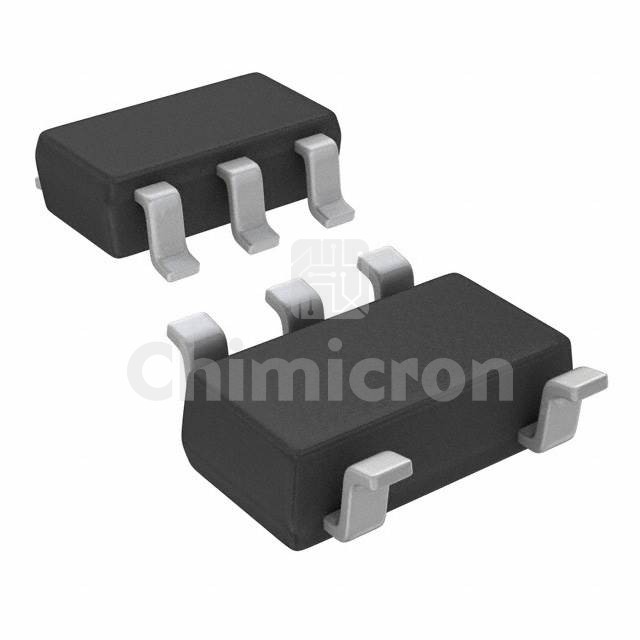

FPF2501
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC PWR SWITCH N-CHAN 1:1 SOT23-5
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: IntelliMAX™
In Stock:15000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FPF2501 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 15000 pieces of FPF2501 in stock available now. Submit an inquiry for FPF2501 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesIntelliMAX™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load4.5V ~ 20V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)2A
Rds On (Typ)230mOhm
Input TypeNon-Inverting
Features-
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-5
Package / CaseSC-74A, SOT-753
