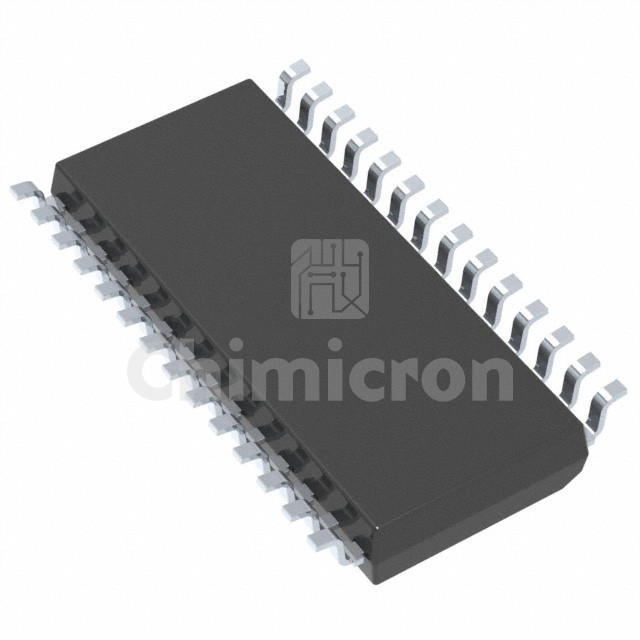

VN770KTR-E
Manufacturer: STMicroelectronics
Description: IC MOTOR DRIVER PAR 28SO
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: OMNIFET II™, VIPower™
In Stock:7350
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VN770KTR-E STMicroelectronics at chimicron.com. We have 7350 pieces of VN770KTR-E in stock available now. Submit an inquiry for VN770KTR-E or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOMNIFET II™, VIPower™
PackageTape & Reel (TR)
Part StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose, Relays
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)160mOhm (Max)
Current - Output / Channel9A
Current - Peak Output-
Voltage - Supply5.5V ~ 36V
Voltage - Load40V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesStatus Flag
Fault ProtectionCurrent Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
