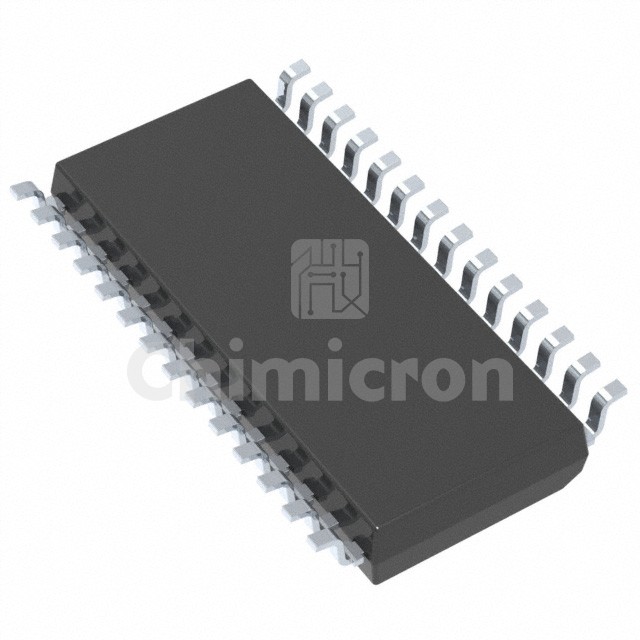

VN772K
Manufacturer: STMicroelectronics
Description: IC MOTOR DRIVER PAR 28SO
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: OMNIFET II™, VIPower™
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VN772K STMicroelectronics at chimicron.com. We have 100000 pieces of VN772K in stock available now. Submit an inquiry for VN772K or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOMNIFET II™, VIPower™
PackageTube
Part StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose, Relays
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)120mOhm (Max)
Current - Output / Channel9A
Current - Peak Output-
Voltage - Supply5.5V ~ 36V
Voltage - Load5.5V ~ 36V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesStatus Flag
Fault ProtectionCurrent Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
