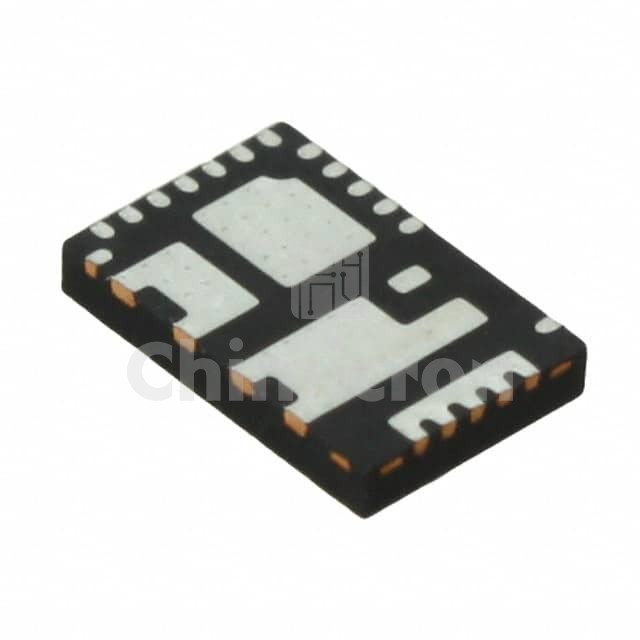

IR3553MTRPBF
Manufacturer: IR (Infineon Technologies)
Description: IC DRIVER GATE 40A PQFN
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: PowIRstage®
In Stock:960000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IR3553MTRPBF IR (Infineon Technologies) at chimicron.com. We have 960000 pieces of IR3553MTRPBF in stock available now. Submit an inquiry for IR3553MTRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowIRstage®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters, Voltage Regulators
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel40A
Current - Peak Output60A
Voltage - Supply4.5V ~ 7V
Voltage - Load4.5V ~ 15V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit, Diode Emulation, Status Flag
Fault ProtectionOver Temperature, UVLO
Mounting TypeSurface Mount
Package / Case25-PowerVFQFN
Supplier Device Package25-PQFN (4x6)
