CM6300
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: FILTER RC(PI) ESD SMD
Category : Filters
Family: EMI/RFI Filters (LC, RC Networks)
Series: -
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CM6300 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 500000 pieces of CM6300 in stock available now. Submit an inquiry for CM6300 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
TypeLow Pass
Filter Order2nd
TechnologyRC (Pi)
Number of Channels3
Center / Cutoff Frequency-
Attenuation Value-
Resistance - Channel (Ohms)47, 100
Current-
ValuesR = 47Ohms, 100Ohms, C = 16.7pF
ESD ProtectionYes
Operating Temperature-40°C ~ 85°C
ApplicationsData Lines for Mobile Devices
Voltage - Rated-
Mounting TypeSurface Mount

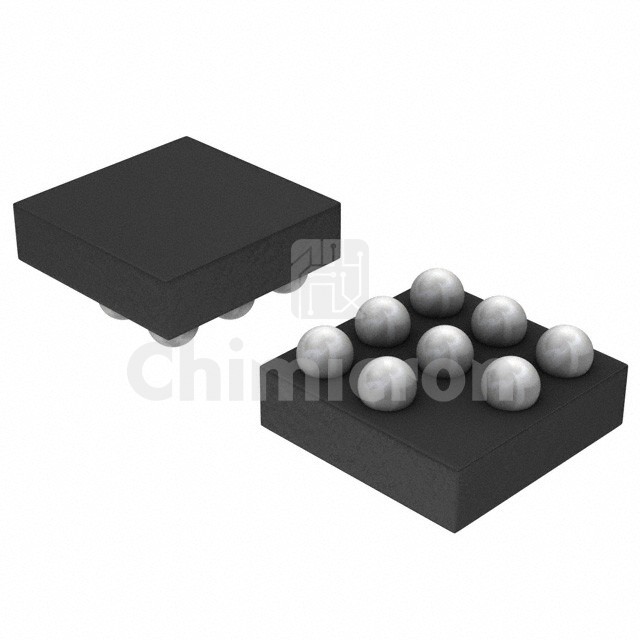

Package / Case8-WFBGA, WLCSP
Size / Dimension0.063" L x 0.063" W (1.60mm x 1.60mm)
Height0.027" (0.69mm)
