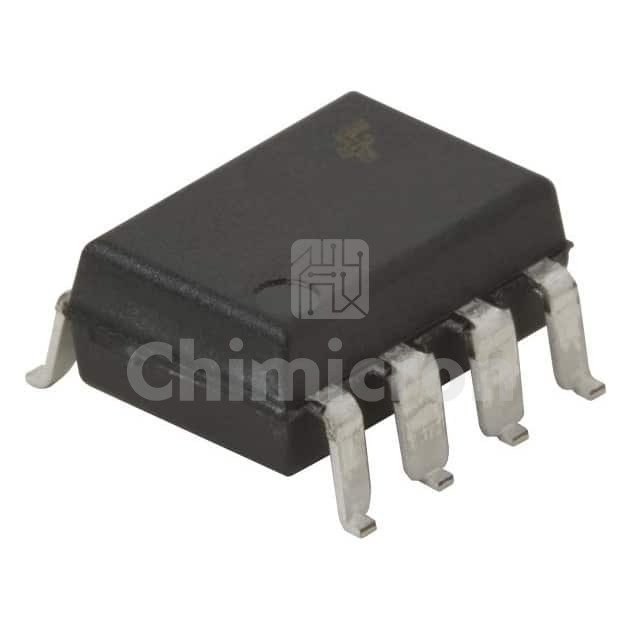

6N135SD
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOISO 2.5KV TRANS W/BASE 8SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 6N135SD Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 500000 pieces of 6N135SD in stock available now. Submit an inquiry for 6N135SD or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)7% @ 16mA
Current Transfer Ratio (Max)50% @ 16mA
Turn On / Turn Off Time (Typ)450ns, 500ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.45V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
