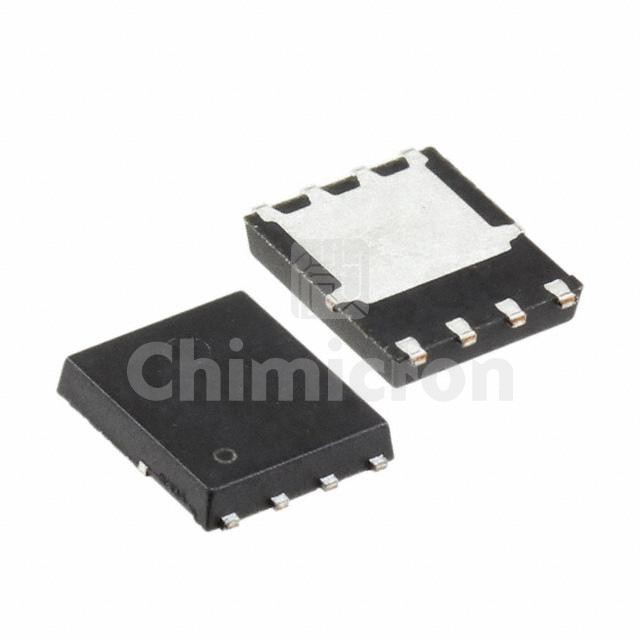

NVMTS0D4N04CTXG
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 40V 79.8A/558A 8DFNW
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:4156
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NVMTS0D4N04CTXG Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 4156 pieces of NVMTS0D4N04CTXG in stock available now. Submit an inquiry for NVMTS0D4N04CTXG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C79.8A (Ta), 558A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs0.45mOhm @ 50A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs251 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds16500 pF @ 20 V
FET Feature-
Power Dissipation (Max)5W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFNW (8.3x8.4)
Package / Case8-PowerTDFN
