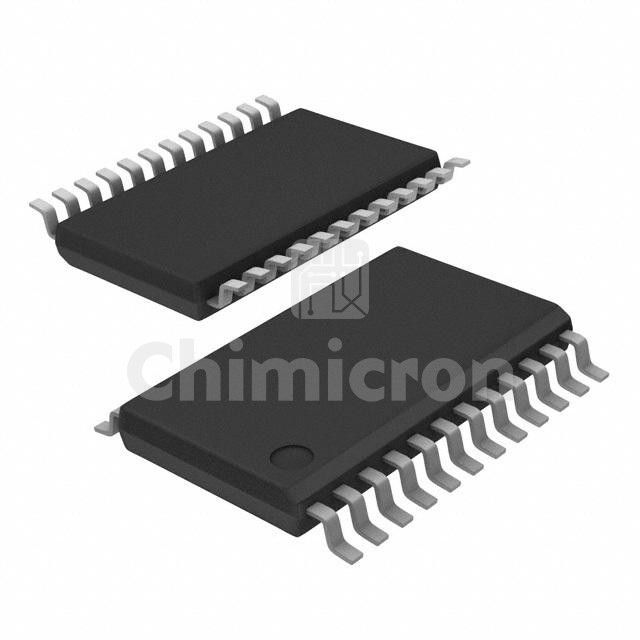

UCC28950PW
Manufacturer: Texas
Description: IC REG CTRLR FULL-BRIDGE 24TSSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC28950PW Texas at chimicron.com. We have 5000 pieces of UCC28950PW in stock available now. Submit an inquiry for UCC28950PW or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyFull-Bridge
Number of Outputs6
Output Phases1
Voltage - Supply (Vcc/Vdd)8V ~ 17V
Frequency - Switching50kHz ~ 1MHz
Duty Cycle (Max)95%
Synchronous RectifierYes
Clock SyncYes
Serial Interfaces-
Control FeaturesDead Time Control, Enable, Frequency Control, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package24-TSSOP
