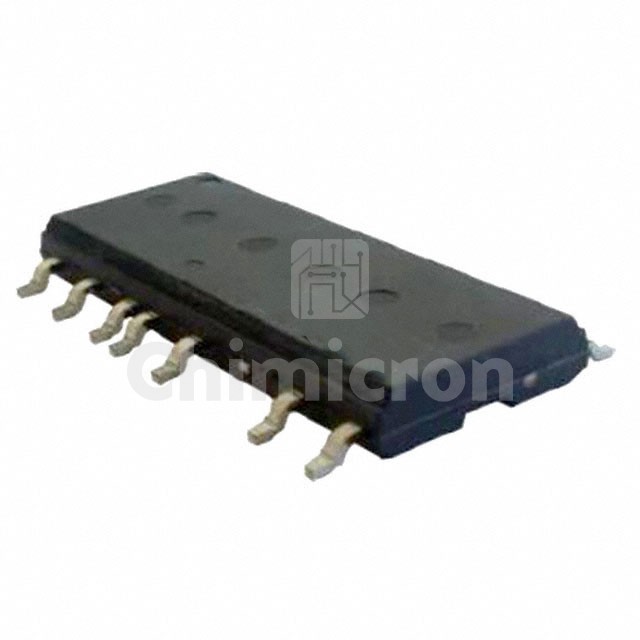

IRSM505-084PA
Manufacturer: Rochester Electronics
Description: INTELLIGENT POWER MODULE (IPM)
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: µIPM™-DIP
In Stock:600000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRSM505-084PA Rochester Electronics at chimicron.com. We have 600000 pieces of IRSM505-084PA in stock available now. Submit an inquiry for IRSM505-084PA or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesµIPM™-DIP
PackageBulk
Part StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyUMOS
Rds On (Typ)340mOhm
Current - Output / Channel4.6A
Current - Peak Output15A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load200V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeSurface Mount
Package / Case32-PowerSMD Module, 23 Leads
Supplier Device Package23-SOP
