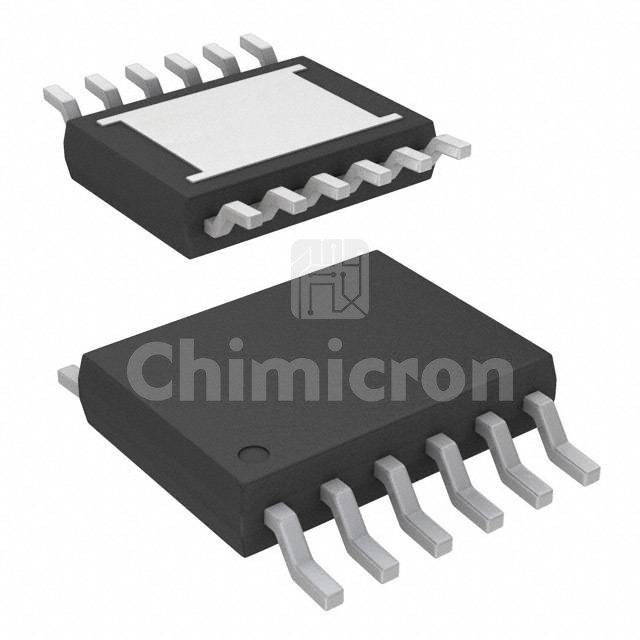

LTC7060IMSE#TRPBF
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: 100V HALF BRIDGE DRIVER W/ FLOAT
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:4900
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LTC7060IMSE#TRPBF Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 4900 pieces of LTC7060IMSE#TRPBF in stock available now. Submit an inquiry for LTC7060IMSE#TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsGeneral Purpose
InterfacePWM
Load TypeCapacitive
TechnologyPower MOSFET
Rds On (Typ)1.5Ohm LS, 1.5mOhm HS
Current - Output / Channel-
Current - Peak Output6A
Voltage - Supply6V ~ 14V
Voltage - Load6V ~ 14V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionShoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package12-MSOP-EP
