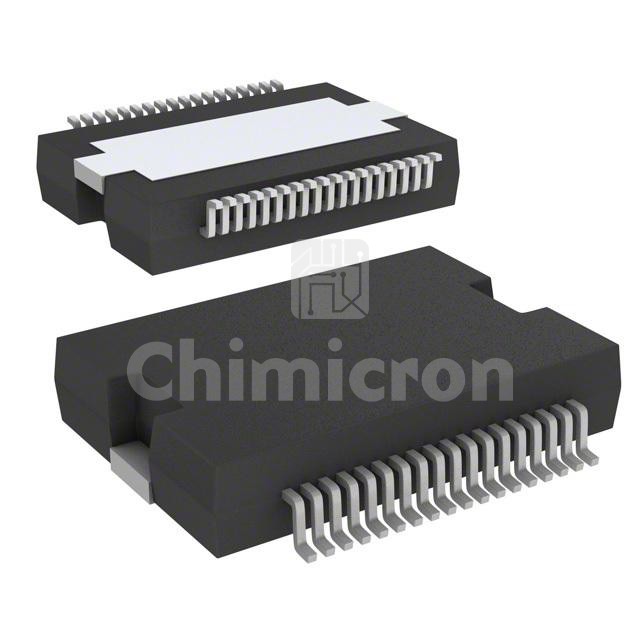

L6206PD013TR
Manufacturer: STMicroelectronics
Description: IC MOTOR DRIVER PAR 36POWERSO
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:31500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L6206PD013TR STMicroelectronics at chimicron.com. We have 31500 pieces of L6206PD013TR in stock available now. Submit an inquiry for L6206PD013TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, Stepper Motors, Voltage Regulators
InterfaceLogic
Load TypeInductive
TechnologyBCDMOS
Rds On (Typ)300mOhm
Current - Output / Channel2.8A
Current - Peak Output5.6A
Voltage - Supply8V ~ 52V
Voltage - Load8V ~ 52V
Operating Temperature-25°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device PackagePowerSO-36
