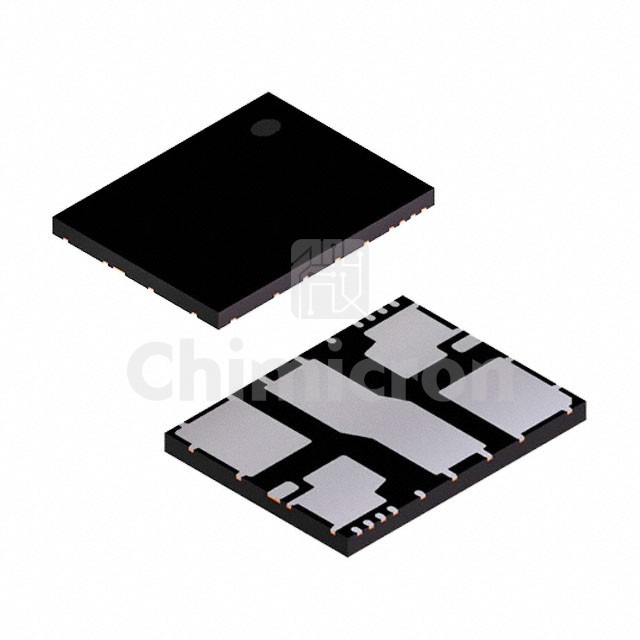

PWD13F60TR
Manufacturer: STMicroelectronics
Description: HIGH-DENSITY POWER DRIVERS
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:7600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PWD13F60TR STMicroelectronics at chimicron.com. We have 7600 pieces of PWD13F60TR in stock available now. Submit an inquiry for PWD13F60TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsIndustrial
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)320mOhm
Current - Output / Channel8A
Current - Peak Output32A
Voltage - Supply15V
Voltage - Load-
Operating Temperature-40°C ~ 125°C (TJ)
Features-
Fault ProtectionUVLO
Mounting TypeSurface Mount
Package / Case28-PowerVQFN
Supplier Device Package28-VFQFPN (10x13)
