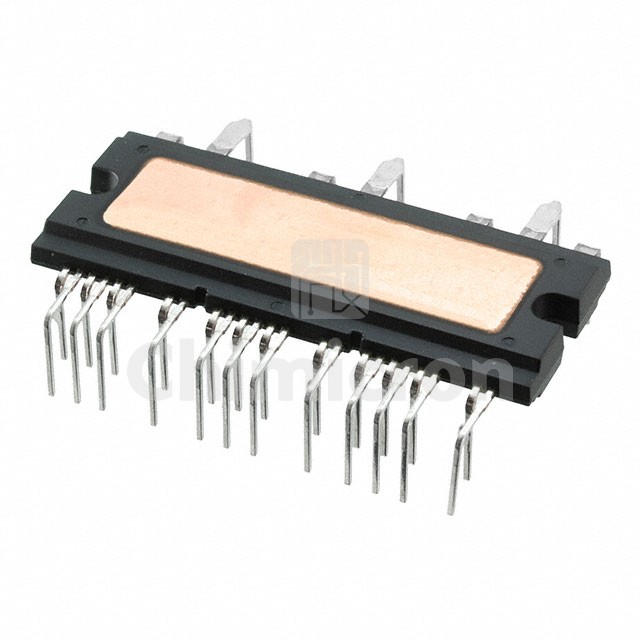

SCM1246MF
Manufacturer: Sanken Electric Co., Ltd.
Description: IC BRIDGE DRIVER PAR SCM33
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:1575
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SCM1246MF Sanken Electric Co., Ltd. at chimicron.com. We have 1575 pieces of SCM1246MF in stock available now. Submit an inquiry for SCM1246MF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyIGBT
Rds On (Typ)-
Current - Output / Channel30A
Current - Peak Output45A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load400V (Max)
Operating Temperature125°C (TJ)
FeaturesAuto Restart, Bootstrap Circuit
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeThrough Hole
Package / Case33-PowerDIP (1.307", 33.20mm) Exposed Pad
Supplier Device Package33-PowerDIP LF2552
