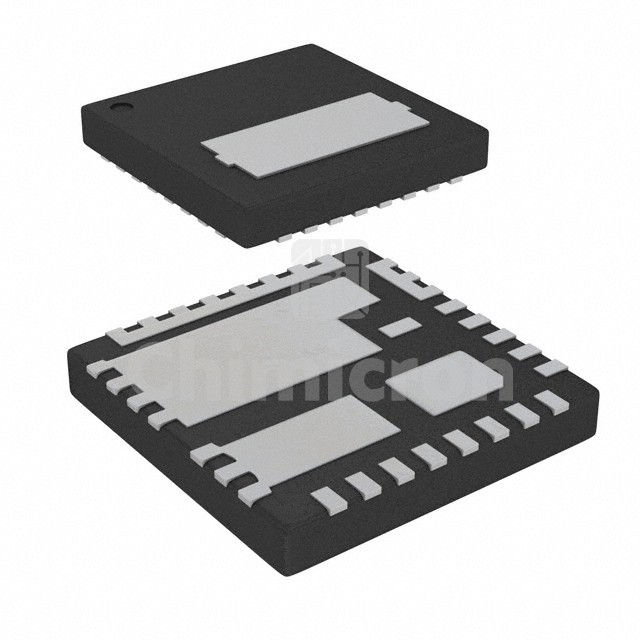

FDMF5820DC
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC SPS HALF-BRIDGE DRVR 31PQFN
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: PowerTrench®, SyncFET™
In Stock:20400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMF5820DC Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 20400 pieces of FDMF5820DC in stock available now. Submit an inquiry for FDMF5820DC or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®, SyncFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters
InterfacePWM
Load TypeInductive
TechnologyUMOS
Rds On (Typ)470mOhm LS, 680mOhm HS
Current - Output / Channel60A
Current - Peak Output-
Voltage - Supply4.5V ~ 5.5V
Voltage - Load4.5V ~ 16V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit, Latch Function, Status Flag
Fault ProtectionOver Temperature, UVLO
Mounting TypeSurface Mount
Package / Case31-PowerWFQFN
Supplier Device Package31-PQFN (5x5)
