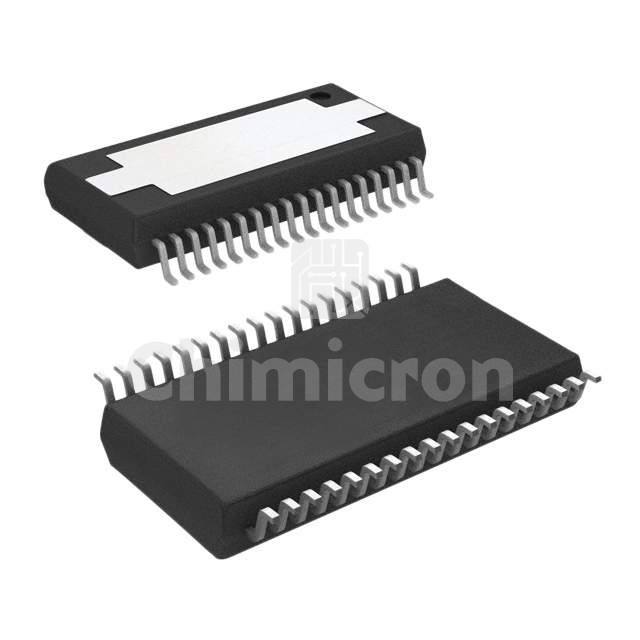

DRV8432DKD
Manufacturer: Texas
Description: IC BRIDGE DRIVER PAR 36HSSOP
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:1050
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DRV8432DKD Texas at chimicron.com. We have 1050 pieces of DRV8432DKD in stock available now. Submit an inquiry for DRV8432DKD or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, Stepper Motors
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)110mOhm LS, 110mOhm HS
Current - Output / Channel7A
Current - Peak Output12A
Voltage - Supply10.8V ~ 13.2V
Voltage - Load0V ~ 52.5V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesStatus Flag
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package36-HSSOP
