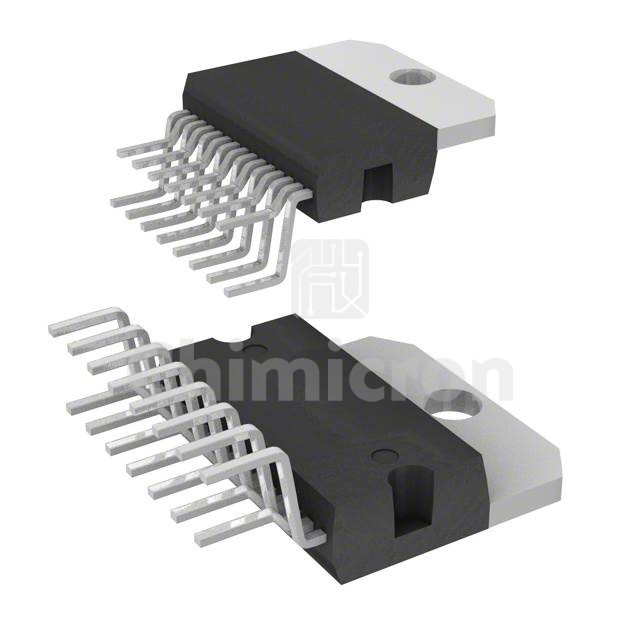

L298N
Manufacturer: STMicroelectronics
Description: IC BRIDGE DRIVER PAR 15MULTIWATT
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:788
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L298N STMicroelectronics at chimicron.com. We have 788 pieces of L298N in stock available now. Submit an inquiry for L298N or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, Relays, Solenoids, Stepper Motors
InterfaceLogic
Load TypeInductive
TechnologyBipolar
Rds On (Typ)-
Current - Output / Channel-
Current - Peak Output2A
Voltage - Supply4.5V ~ 7V
Voltage - Load4.8V ~ 46V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature
Mounting TypeThrough Hole
Package / CaseMultiwatt-15 (Vertical, Bent and Staggered Leads)
Supplier Device Package15-Multiwatt
