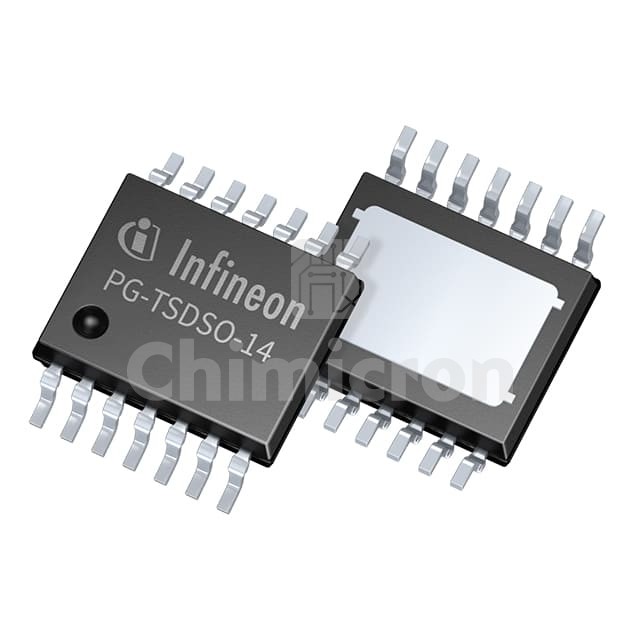

BTN70301EPAXUMA1
Manufacturer: IR (Infineon Technologies)
Description: IC HALF BRIDGE DRIVER TSDSO-14
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: *
In Stock:124000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BTN70301EPAXUMA1 IR (Infineon Technologies) at chimicron.com. We have 124000 pieces of BTN70301EPAXUMA1 in stock available now. Submit an inquiry for BTN70301EPAXUMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series*
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologySMART7
Rds On (Typ)20mOhm LS, 12mOhm HS
Current - Output / Channel7A
Current - Peak Output17A
Voltage - Supply6V ~ 18V
Voltage - Load-
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesDiagnostic Enable, Enable, SENSE
Fault ProtectionCurrent Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-TSDSO-14
