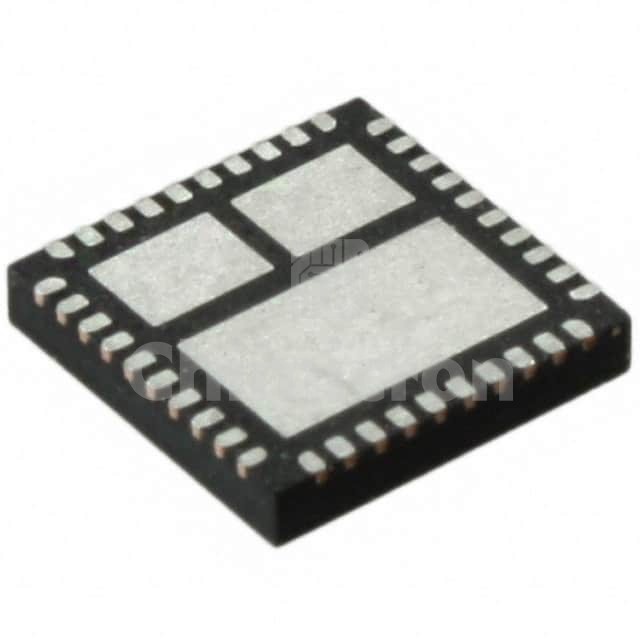

FDMF6820A
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MODULE DRMOS 60A 40-PQFN
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: XS™ DrMOS
In Stock:5117
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMF6820A Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 5117 pieces of FDMF6820A in stock available now. Submit an inquiry for FDMF6820A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesXS™ DrMOS
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters
InterfacePWM
Load TypeInductive
TechnologyDrMOS
Rds On (Typ)1Ohm LS, 1Ohm HS
Current - Output / Channel60A
Current - Peak Output-
Voltage - Supply4.5V ~ 5.5V
Voltage - Load3V ~ 16V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit, Status Flag
Fault ProtectionOver Temperature, Shoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case40-PowerTFQFN
Supplier Device Package40-PQFN (6x6)
